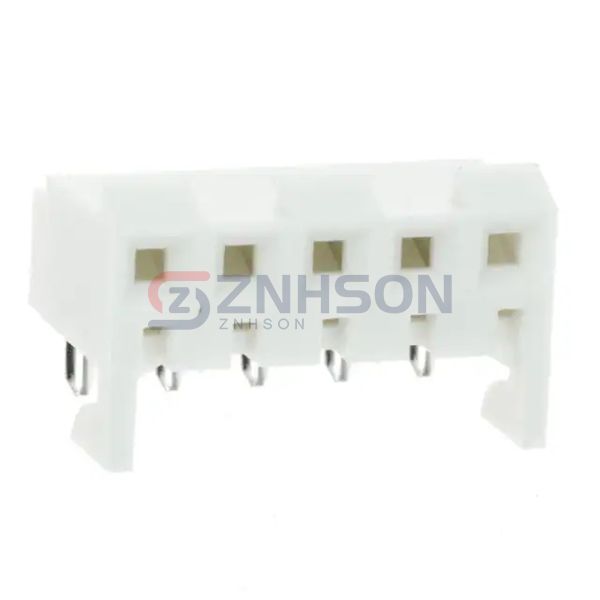

0009481054
Molex
Molex
CONN RCPT 5P 0.156 TIN EDGE MNT
$1.76
Available to order
Reference Price (USD)
1+
$1.76000
500+
$1.7424
1000+
$1.7248
1500+
$1.7072
2000+
$1.6896
2500+
$1.672
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with the 0009481054 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are engineered for high durability, efficient signal transmission, and easy installation. Perfect for applications in automotive systems, medical devices, and data centers, they ensure stable connections under varying conditions. With features like corrosion-resistant materials and secure locking mechanisms, Molex connectors are the go-to choice for professionals. Common uses include server backplanes, control panels, and handheld devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 5
- Number of Positions Loaded: All
- Pitch - Mating: 0.156" (3.96mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Board Edge, Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Insulation Color: Natural
- Insulation Height: 0.308" (7.82mm)
- Contact Length - Post: 0.145" (3.68mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Hooks
- Current Rating (Amps): 5A
- Voltage Rating: 600V
Related Products
Samtec Inc.
CLT-104-02-L-D-A-P-TR
Sullins Connector Solutions
LPPB071NGCN-RC
Mill-Max Manufacturing Corp.
316-41-108-41-007000
Preci-Dip
411-83-230-41-001101
Samtec Inc.
SLM-123-01-G-S
Preci-Dip
801-87-016-65-001101
Preci-Dip
861-87-038-40-001101
Samtec Inc.

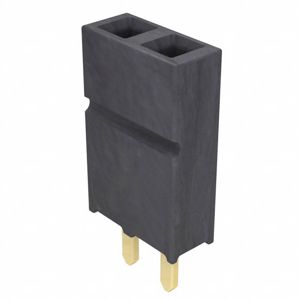

SSW-102-02-T-P
