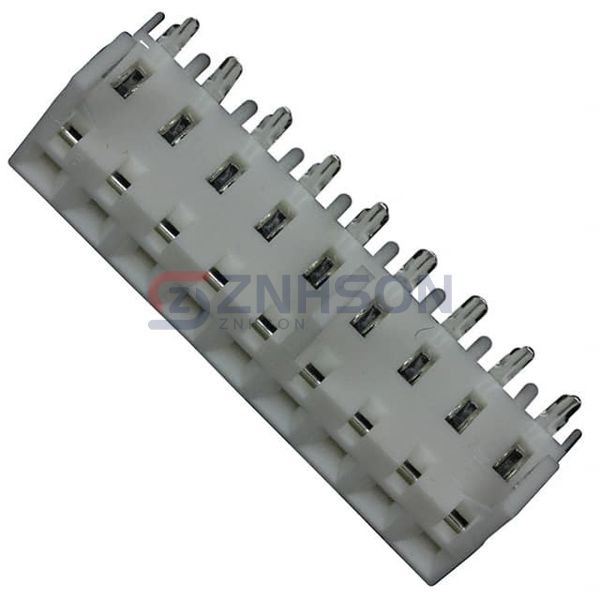

0009481094
Molex
Molex
CONN RCPT 9P 0.156 TIN EDGE MNT
$2.42
Available to order
Reference Price (USD)
1+
$2.19000
10+
$1.98600
100+
$1.70250
693+
$1.41873
1,386+
$1.21605
5,544+
$1.07823
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with the 0009481094 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are engineered for high durability, efficient signal transmission, and easy installation. Perfect for applications in automotive systems, medical devices, and data centers, they ensure stable connections under varying conditions. With features like corrosion-resistant materials and secure locking mechanisms, Molex connectors are the go-to choice for professionals. Common uses include server backplanes, control panels, and handheld devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 9
- Number of Positions Loaded: All
- Pitch - Mating: 0.156" (3.96mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Board Edge, Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Insulation Color: Natural
- Insulation Height: 0.308" (7.82mm)
- Contact Length - Post: 0.145" (3.68mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Hooks
- Current Rating (Amps): 5A
- Voltage Rating: 600V
Related Products
Preci-Dip
853-83-042-20-001101
Mill-Max Manufacturing Corp.
803-43-072-10-004000
Samtec Inc.
SFMC-125-T2-L-D-K-TR
Samtec Inc.
SSM-108-L-DV-BE-M-TR
Samtec Inc.
CLT-113-02-G-D-BE-A-K-TR
Preci-Dip
316-83-152-41-003101
Mill-Max Manufacturing Corp.
801-43-038-10-002000
Preci-Dip

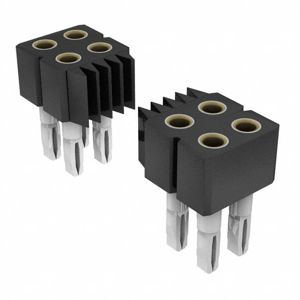

833-87-046-64-001101
Mill-Max Manufacturing Corp.

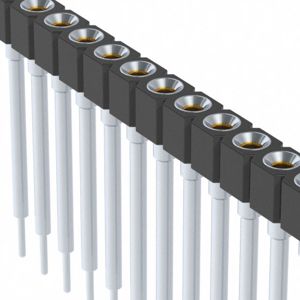

316-47-160-41-001000
