0009482051
Molex
Molex

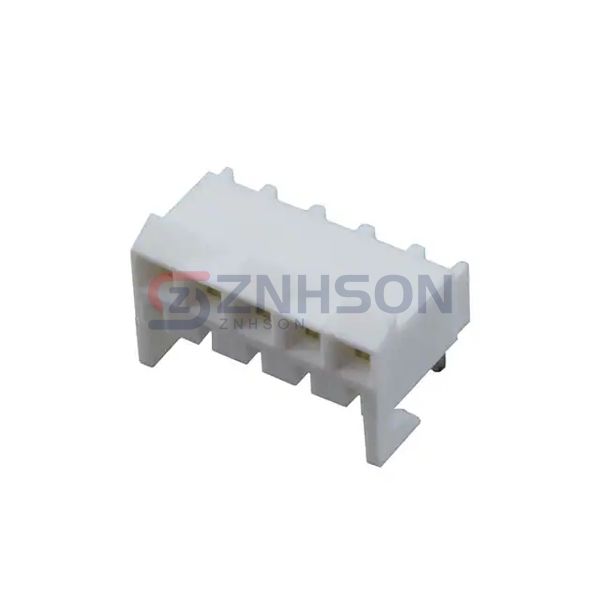

CONN RCPT 5P 0.156 TIN EDGE MNT
$0.90
Available to order
Reference Price (USD)
1+
$0.78000
10+
$0.73300
100+
$0.56190
500+
$0.48860
1,232+
$0.40309
6,160+
$0.35424
11,088+
$0.32981
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with 0009482051 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Molex connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 5
- Number of Positions Loaded: All
- Pitch - Mating: 0.156" (3.96mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Board Edge, Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Insulation Color: Natural
- Insulation Height: 0.308" (7.82mm)
- Contact Length - Post: 0.145" (3.68mm)
- Operating Temperature: -40°C ~ 80°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Hooks
- Current Rating (Amps): 4.5A
- Voltage Rating: 600V
