0009483104
Molex
Molex

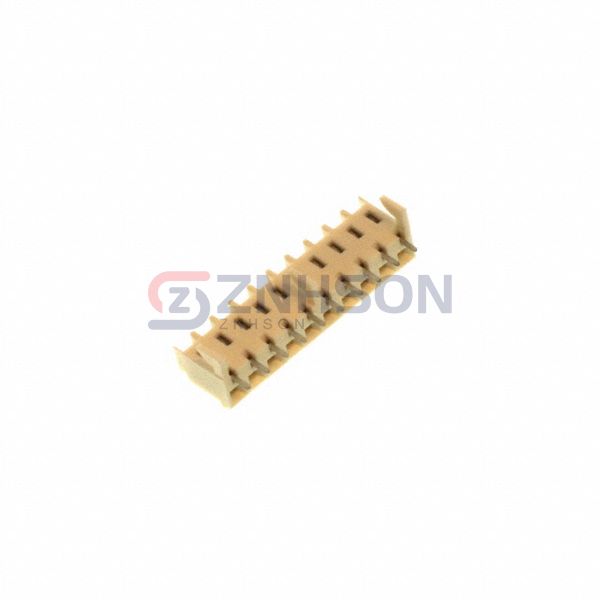

CONN RCPT 10POS 0.156 GOLD PCB
$2.62
Available to order
Reference Price (USD)
1+
$2.62000
500+
$2.5938
1000+
$2.5676
1500+
$2.5414
2000+
$2.5152
2500+
$2.489
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with 0009483104 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Molex connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Bottom Entry
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 10
- Number of Positions Loaded: All
- Pitch - Mating: 0.156" (3.96mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Insulation Color: Natural
- Insulation Height: 0.449" (11.40mm)
- Contact Length - Post: 0.125" (3.18mm)
- Operating Temperature: -40°C ~ 80°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Hooks
- Current Rating (Amps): 4A
- Voltage Rating: 600V
