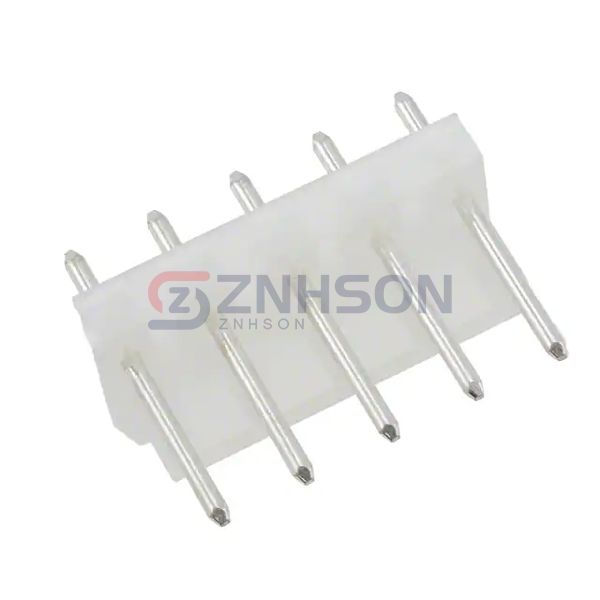

0010085051
Molex
Molex
CONN HEADER VERT 5POS 5.08MM
$0.99
Available to order
Reference Price (USD)
1+
$0.78000
10+
$0.68600
100+
$0.59220
500+
$0.48456
1,000+
$0.43072
5,000+
$0.37688
10,000+
$0.35804
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0010085051 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.200" (5.08mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.175" (4.45mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.375" (9.53mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77313-185-42LF
Amphenol ICC (FCI)
77311-102-04LF
Samtec Inc.
TSW-138-08-L-D
TE Connectivity AMP Connectors
1-5102162-0
Harwin Inc.
M55-7104042R
Molex
1053142310
Samtec Inc.
MMT-111-01-T-SH-K-TR
TE Connectivity AMP Connectors
640383-6
Amphenol ICC (FCI)

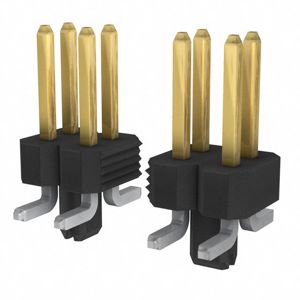

98401-801A16LF
