0010321031
Molex
Molex

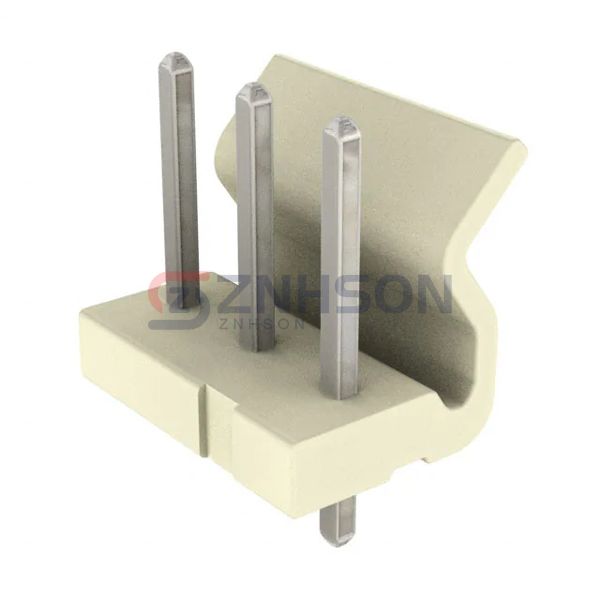

CONN HEADER VERT 3POS 5.08MM
$1.04
Available to order
Reference Price (USD)
1+
$1.04000
500+
$1.0296
1000+
$1.0192
1500+
$1.0088
2000+
$0.9984
2500+
$0.988
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0010321031 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.200" (5.08mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.419" (10.65mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: 0.687" (17.45mm)
- Insulation Height: 0.508" (12.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
