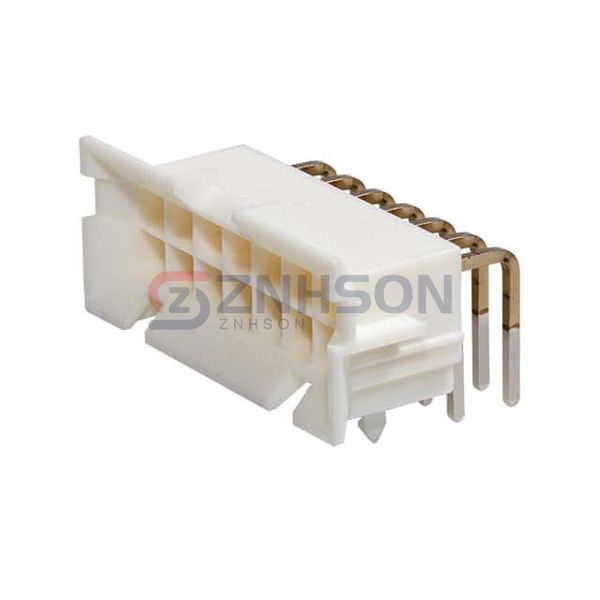

0015246143
Molex
Molex
CONN HEADER R/A 14POS 4.2MM
$7.20
Available to order
Reference Price (USD)
1+
$5.89000
10+
$5.65100
25+
$5.18040
50+
$4.94480
100+
$4.70940
250+
$4.12072
500+
$4.00300
1,000+
$3.41432
2,500+
$3.17884
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 0015246143 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0015246143 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.591" (15.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
171826-9
Samtec Inc.
FTE-112-01-G-DH-K-TR
Samtec Inc.
TFC-110-22-LM-D
Preci-Dip
852-80-052-30-002101
Samtec Inc.
TSW-130-14-T-D
TE Connectivity AMP Connectors
146268-4
Adam Tech
BHR-16-VSG-SMT
Molex
0901220795
Samtec Inc.

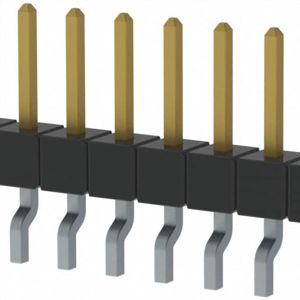

MMT-115-02-S-SH
