0015247101
Molex
Molex

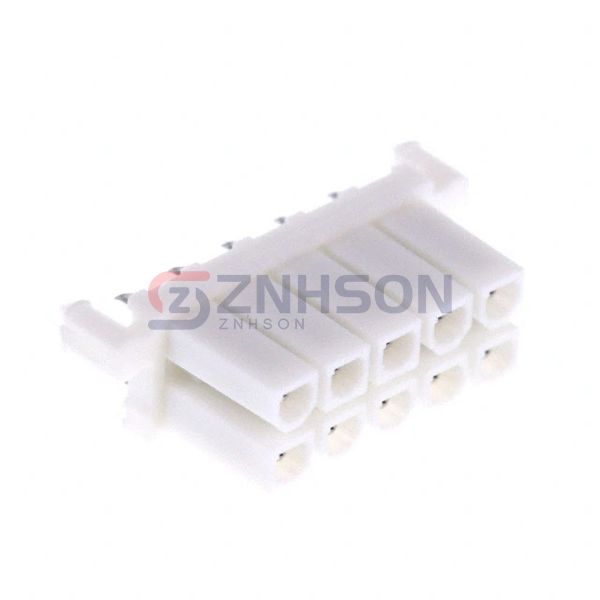

CONN RCPT 10POS 0.165 TIN PCB
$3.21
Available to order
Reference Price (USD)
1+
$2.52000
10+
$2.42000
100+
$2.01660
500+
$1.71412
1,440+
$1.46203
5,760+
$1.31079
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with 0015247101 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Molex connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 10
- Number of Positions Loaded: All
- Pitch - Mating: 0.165" (4.20mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Insulation Color: Natural
- Insulation Height: 0.446" (11.33mm)
- Contact Length - Post: 0.138" (3.50mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Lock
- Current Rating (Amps): -
- Voltage Rating: 600V
