0015477618
Molex
Molex
CONN HEADER VERT 18POS 2.54MM
$4.93
Available to order
Reference Price (USD)
1,224+
$2.29462
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

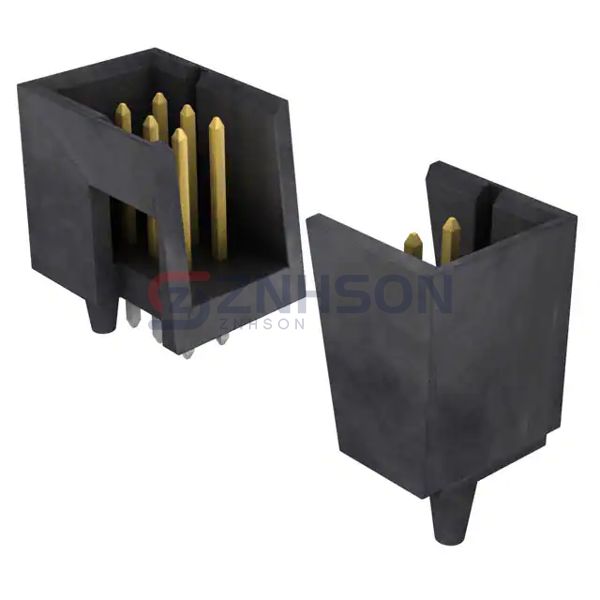

Enhance your electronic assemblies with the 0015477618 rectangular connector header from Molex. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 0015477618 meets the highest industry standards. Molex provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.315" (8.00mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.570" (14.48mm)
- Insulation Height: 0.475" (12.07mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0015913180
Samtec Inc.
TFC-115-02-F-D-TR
Samtec Inc.
TMM-106-03-S-D
Samtec Inc.
TSM-112-01-L-DV-P-TR
Sullins Connector Solutions
PRPC019DAAN-RC
Samtec Inc.
FTSH-115-01-LM-D-RA
Molex
38-00-7089
Samtec Inc.
FTE-141-01-G-DH

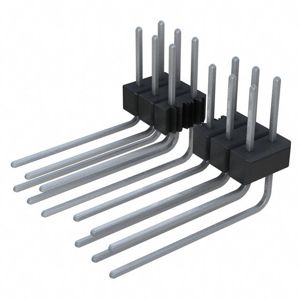

Sullins Connector Solutions
