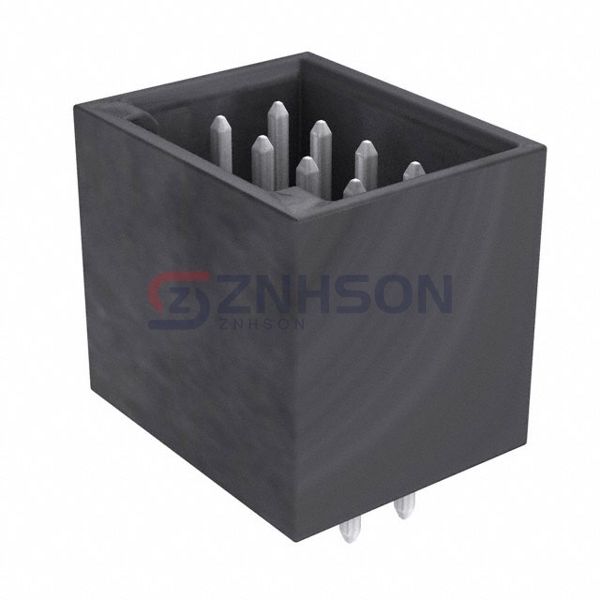

0015800081

Molex

Manufacturer

Molex

Description:

CONN HEADER VERT 8POS 2.54MM

Datasheet:

0015800081 Datasheet

$2.80

Available to order

Reference Price (USD)

$2.38000

10+

$2.15700

100+

$1.84930

960+

$1.49702

1,920+

$1.27687

5,760+

$1.17120

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Upgrade your electronic designs with the 0015800081 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 0015800081 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 8
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Detent Lock
Contact Length - Mating: 0.315" (8.00mm)
Contact Length - Post: 0.130" (3.30mm)
Overall Contact Length: 0.570" (14.48mm)
Insulation Height: 0.475" (12.07mm)
Contact Shape: Square
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 150.0µin (3.81µm)
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Features: -
Operating Temperature: -
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): -
Voltage Rating: -

Shopping cart

0015800081

Reference Price (USD)

Specifications

Related Products

M20-9952045

PRPC005SFAN-RC

SHF-110-01-F-D-TH

95278-107A06LF

800-10-015-20-004101

440052-8

TSM-109-03-G-DV-A

D3627-5202-AR

0022284284

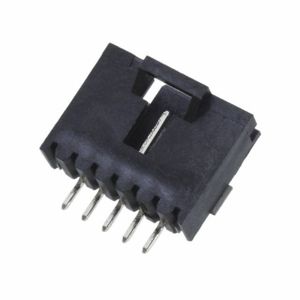

147324-4
