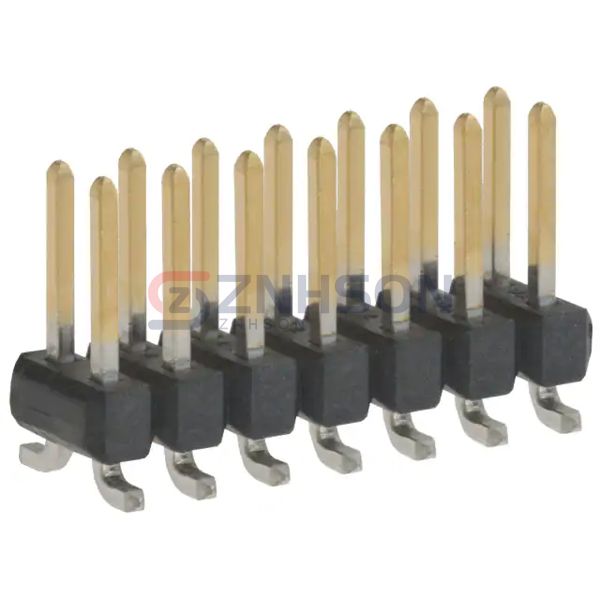

0015910140
Molex
Molex
CONN HEADER SMD 14POS 2.54MM
$1.85
Available to order
Reference Price (USD)
1+
$1.46000
10+
$1.32100
100+
$1.13210
500+
$0.94342
1,620+
$0.78170
6,480+
$0.71700
11,340+
$0.70083
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 0015910140 rectangular connector header from Molex. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 0015910140 meets the highest industry standards. Molex provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
78511-214HLF
Preci-Dip
850-80-017-30-001101
Samtec Inc.
TSM-105-03-S-DH-A-K-TR
Amphenol ICC (FCI)
95278-102-42LF
Samtec Inc.
BBL-111-G-F
Samtec Inc.
TSM-104-03-F-DH-K
Amphenol ICC (FCI)
10162688-205202CLF
TE Connectivity AMP Connectors
1-2842168-0

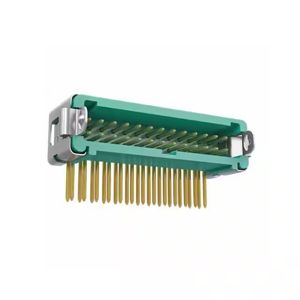

Harwin Inc.
