0022032091
Molex
Molex
CONN HEADER VERT 9POS 2.54MM
$1.03
Available to order
Reference Price (USD)
1+
$0.89000
10+
$0.78400
100+
$0.67630
500+
$0.55332
1,000+
$0.49184
5,000+
$0.43036
10,000+
$0.40884
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022032091 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: 0.560" (14.22mm)
- Insulation Height: 0.130" (3.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0022287033
Samtec Inc.
ZSS-120-01-L-D-477
Samtec Inc.
TMM-119-01-G-S
Molex
0022102031
Samtec Inc.
HTSW-150-05-G-S
Samtec Inc.
TSW-102-26-L-S
Amphenol ICC (FCI)
10118884-406011LF
Preci-Dip
830-10-014-20-001101
Sullins Connector Solutions

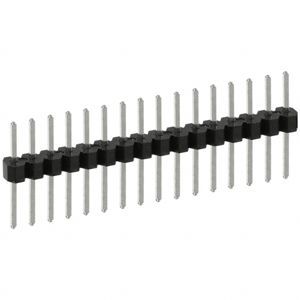

PEC16SACN
