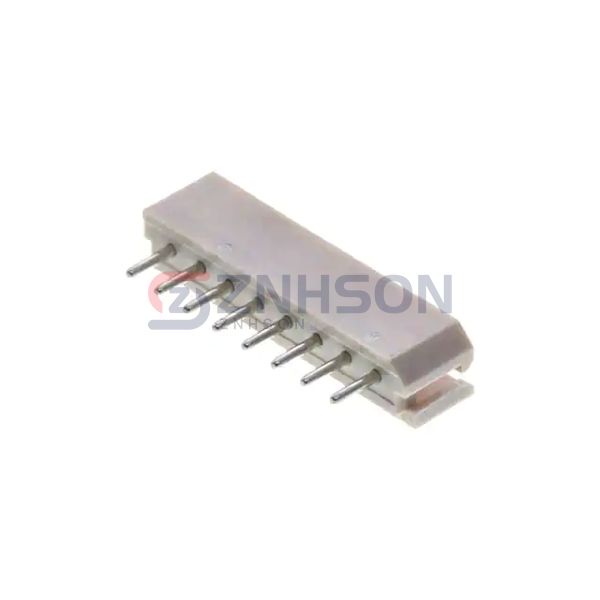

0022035085
Molex
Molex
CONN HEADER VERT 8POS 2.5MM
$0.50
Available to order
Reference Price (USD)
1+
$0.50000
500+
$0.495
1000+
$0.49
1500+
$0.485
2000+
$0.48
2500+
$0.475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022035085 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.138" (3.50mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.350" (8.89mm)
- Insulation Height: 0.232" (5.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-130-03-L-DV-A-P
Samtec Inc.
TSW-107-09-F-S
Samtec Inc.
TSM-103-02-T-SV-LC
Samtec Inc.
TMM-119-03-G-S
Samtec Inc.
FTSH-110-04-L-DH-C
Preci-Dip
850-80-040-40-001101
Preci-Dip
800-80-037-30-001101
Samtec Inc.
IPL1-125-01-S-D-K
Samtec Inc.

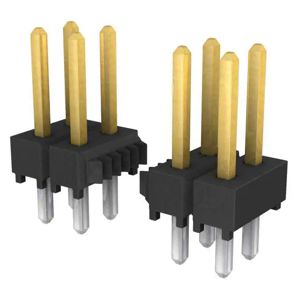

TSW-140-23-S-D
