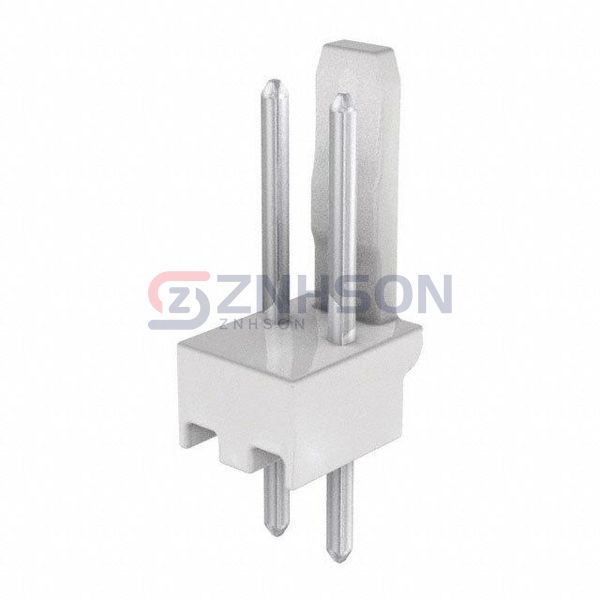

0022041021
Molex
Molex
CONN HEADER VERT 2POS 2.5MM
$0.82
Available to order
Reference Price (USD)
1+
$0.82000
500+
$0.8118
1000+
$0.8036
1500+
$0.7954
2000+
$0.7872
2500+
$0.779
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 0022041021 rectangular connector header from Molex. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 0022041021 is perfect for automotive, industrial, and consumer electronics. Molex ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: 0.559" (14.20mm)
- Insulation Height: 0.461" (11.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-120-05-L-DV
Samtec Inc.
TMM-124-02-T-S
Samtec Inc.
ZSS-112-03-G-D-665
Molex
5023520710
Molex
0713080188
Molex
90816-0014
Amphenol ICC (FCI)

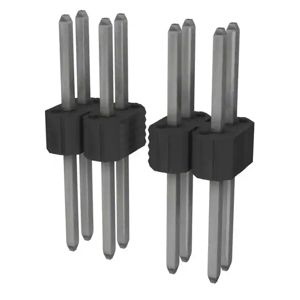

69133-472HLF
Molex

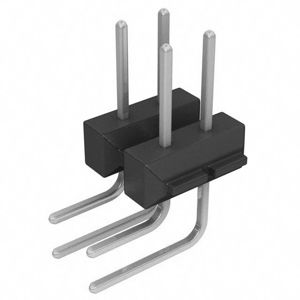

0010883061
Hirose Electric Co Ltd

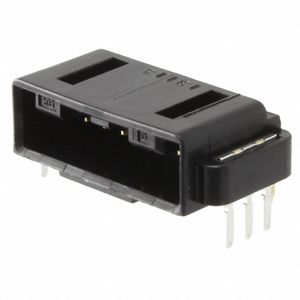

GT8E-8P-DS
