0022102101
Molex
Molex
CONN HEADER VERT 10POS 2.54MM
$2.30
Available to order
Reference Price (USD)
1+
$1.92000
10+
$1.74000
100+
$1.49100
500+
$1.24250
1,000+
$1.06500
5,000+
$0.94430
10,000+
$0.92300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022102101 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: 0.560" (14.22mm)
- Insulation Height: 0.130" (3.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Hirose Electric Co Ltd
DF51K-10DP-2DS(805)
Hirose Electric Co Ltd
A1-8PA-2.54DS(71)
Samtec Inc.
FTSH-108-01-F-DV
Sullins Connector Solutions
PEC14DBAN
Samtec Inc.
IPT1-102-05-L-D
TE Connectivity AMP Connectors
1-178315-2
Amphenol ICC (FCI)
77314-171LF
3M
929836-09-02
Sullins Connector Solutions

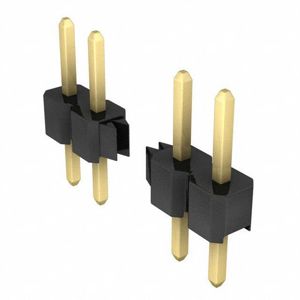

NRPN371PAEN-RC
