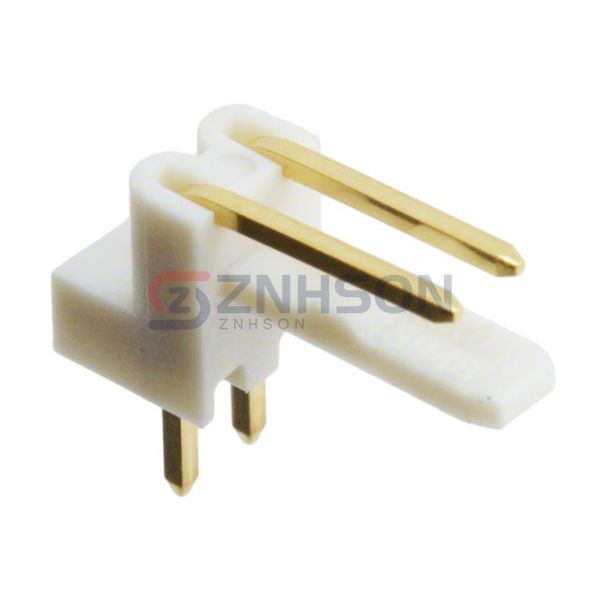

0022121022
Molex
Molex
CONN HEADER R/A 2POS 2.5MM
$1.93
Available to order
Reference Price (USD)
1+
$1.93000
500+
$1.9107
1000+
$1.8914
1500+
$1.8721
2000+
$1.8528
2500+
$1.8335
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022121022 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.248" (6.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 13.8µin (0.35µm)
- Contact Finish - Post: -
- Contact Material: -
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
