0022232021
Molex
Molex

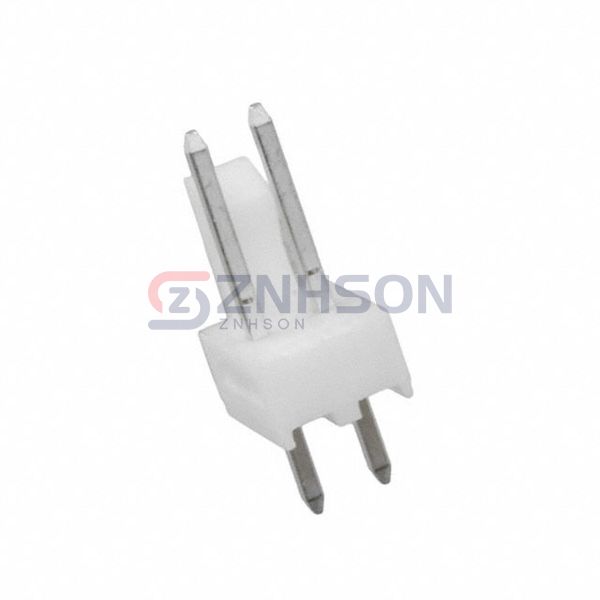

CONN HEADER VERT 2POS 2.54MM
$0.22
Available to order
Reference Price (USD)
1+
$0.22000
500+
$0.2178
1000+
$0.2156
1500+
$0.2134
2000+
$0.2112
2500+
$0.209
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022232021 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.140" (3.56mm)
- Overall Contact Length: 0.560" (14.22mm)
- Insulation Height: 0.322" (8.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: -
