0022284028

Molex

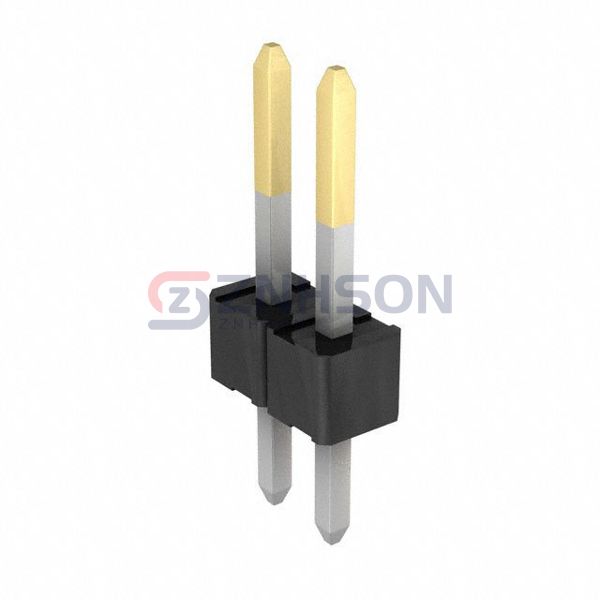

0022284028 Preview
Molex
CONN HEADER VERT 2POS 2.54MM
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header, Breakaway
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 2
  • Number of Rows: 1
  • Row Spacing - Mating: -
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.295" (7.49mm)
  • Contact Length - Post: 0.120" (3.05mm)
  • Overall Contact Length: 0.505" (12.83mm)
  • Insulation Height: 0.090" (2.29mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 30.0µin (0.76µm)
  • Contact Finish - Post: Tin
  • Contact Material: -
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Features: -
  • Operating Temperature: -
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): -
  • Voltage Rating: -

Related Products

TE Connectivity AMP Connectors

1-794078-0

Sullins Connector Solutions

PBC08DAAN

Sullins Connector Solutions

SBH11-PBPC-D25-RA-BK

Sullins Connector Solutions

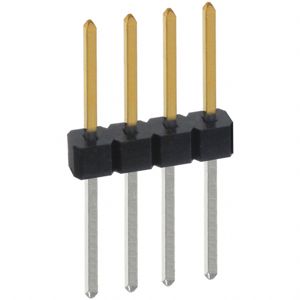

PBC04SFCN
