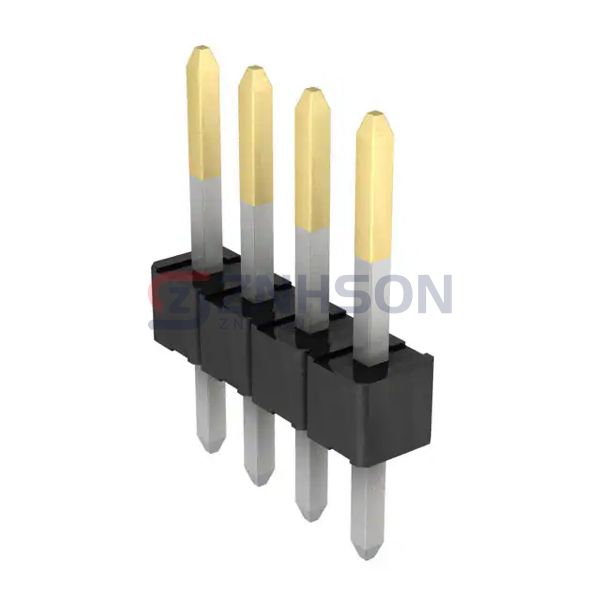

0022284045
Molex
Molex
CONN HEADER VERT 4POS 2.54MM
$0.33
Available to order
Reference Price (USD)
1+
$0.33000
500+
$0.3267
1000+
$0.3234
1500+
$0.3201
2000+
$0.3168
2500+
$0.3135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 0022284045 rectangular connector header from Molex. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 0022284045 is perfect for automotive, industrial, and consumer electronics. Molex ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.505" (12.83mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PEC20SBAN
Samtec Inc.
TMM-108-06-G-D-SM-P
Samtec Inc.
TMM-118-04-T-D
Samtec Inc.
T1M-15-F-SH-L-K
Molex
0878327423
Samtec Inc.

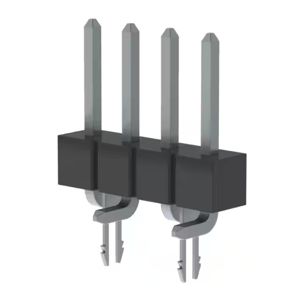

TSM-104-01-T-SV-LC-P-TR
Samtec Inc.

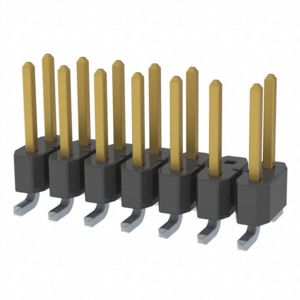

TSM-107-01-L-DV-004
Harwin Inc.

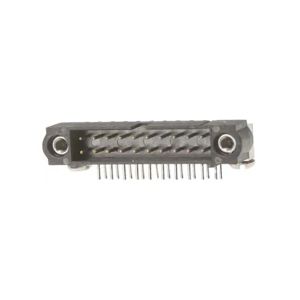

M80-5414242
Sullins Connector Solutions

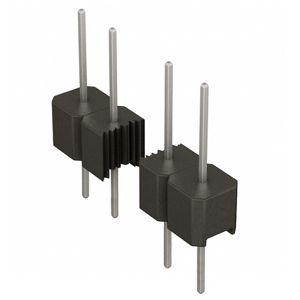

PREC031SACN-RC
