0022286042
Molex
Molex

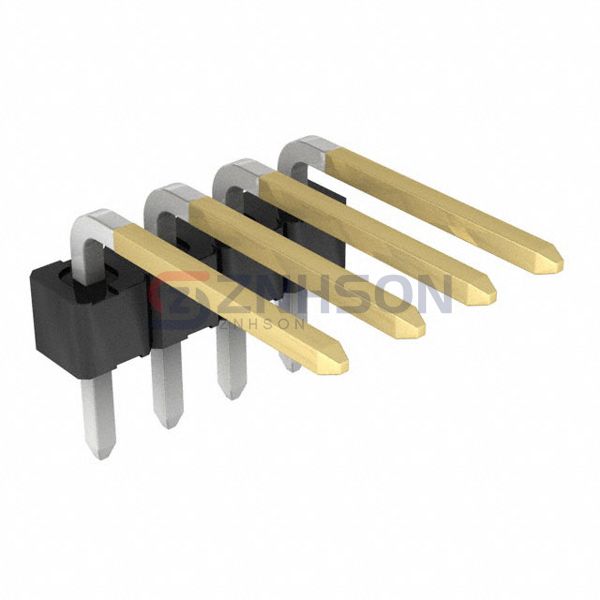

CONN HEADER R/A 4POS 2.54MM
$0.20
Available to order
Reference Price (USD)
1+
$0.19738
500+
$0.1954062
1000+
$0.1934324
1500+
$0.1914586
2000+
$0.1894848
2500+
$0.187511
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 0022286042 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0022286042 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.361" (9.17mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-109-02-L-SH
Samtec Inc.
BKT-155-04-L-V-P
Samtec Inc.
HTSW-103-20-T-S
Amphenol ICC (FCI)
10129382-914001BLF
Samtec Inc.
BKT-139-05-L-V-A
Preci-Dip
894-70-108-10-003101
Samtec Inc.
MMT-116-02-T-DH-TR
Samtec Inc.

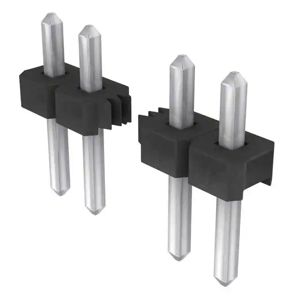

TLW-129-05-T-S
