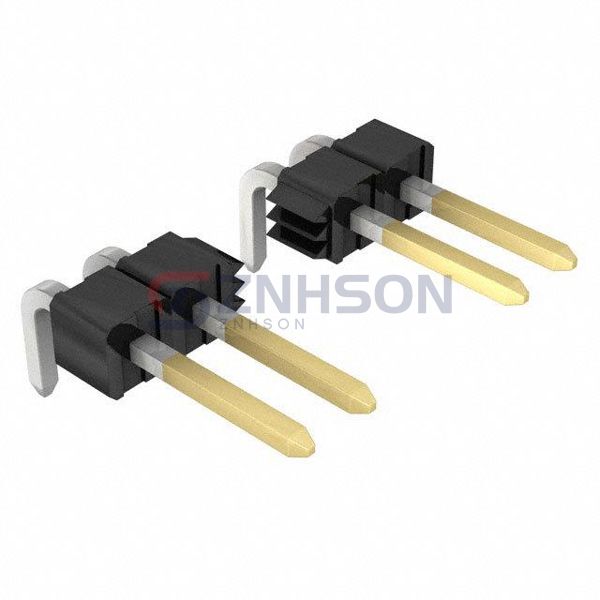

0022288142
Molex
Molex
CONN HEADER R/A 14POS 2.54MM
$1.01
Available to order
Reference Price (USD)
1+
$1.01000
10+
$0.88900
25+
$0.83640
50+
$0.80160
100+
$0.76680
250+
$0.69712
500+
$0.62740
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 0022288142 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0022288142 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.244" (6.20mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
5-146285-6
Samtec Inc.
TMMH-140-01-F-D
Samtec Inc.
TSM-116-01-T-SH-P
Samtec Inc.

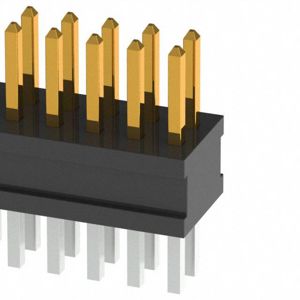

FTSH-108-01-F-D
Samtec Inc.

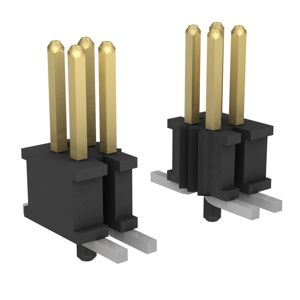

FTSH-147-02-F-DV-A
TE Connectivity AMP Connectors

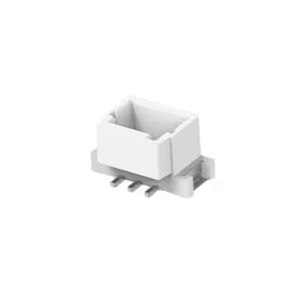

1-2232829-3
Preci-Dip

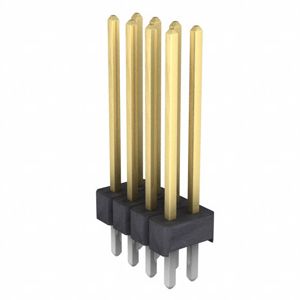

892-18-008-10-004101
Sullins Connector Solutions

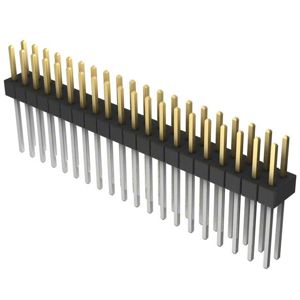

PBC20DADN
