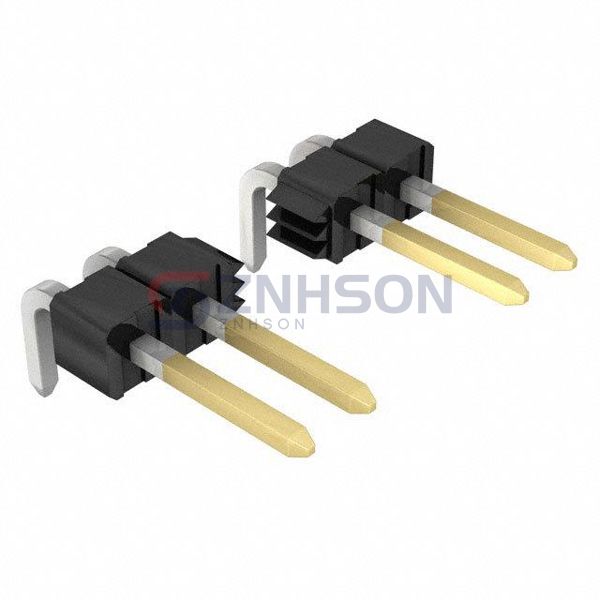

0022288185
Molex
Molex
CONN HEADER R/A 18POS 2.54MM
$0.97
Available to order
Reference Price (USD)
1+
$0.96505
500+
$0.9553995
1000+
$0.945749
1500+
$0.9360985
2000+
$0.926448
2500+
$0.9167975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022288185 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 0022288185 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.324" (8.23mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-112-01-L-SH-A-P-TR
Samtec Inc.
TSW-111-05-S-S
Phoenix Contact
1061728
TE Connectivity AMP Connectors
6-1747072-6
TE Connectivity AMP Connectors
2-1445098-8
Samtec Inc.
TSM-132-03-L-DV-A-P
Harwin Inc.

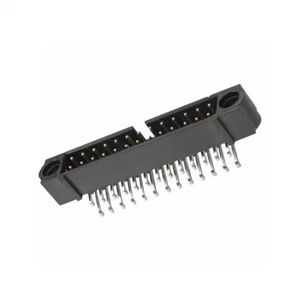

M80-5520842
Samtec Inc.

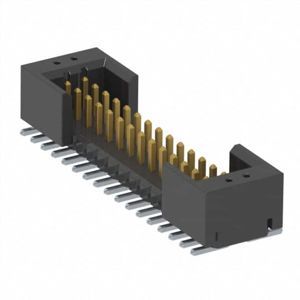

FTM-113-03-L-DV-S
