0026481023
Molex
Molex

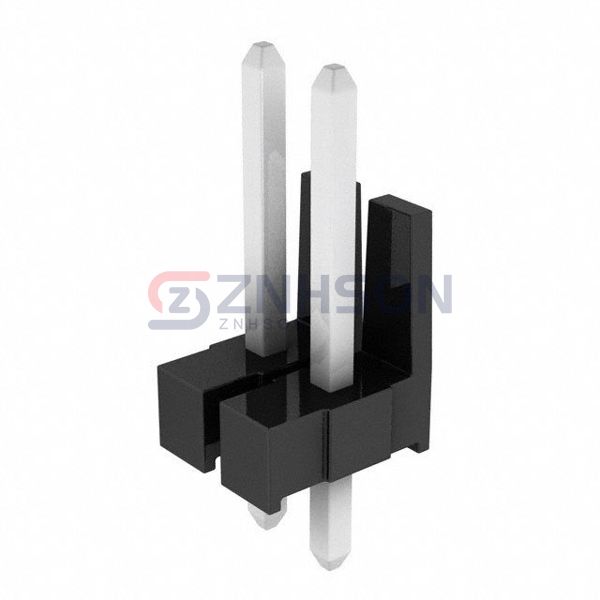

CONN HEADER VERT 2POS 3.96MM
$0.31
Available to order
Reference Price (USD)
1+
$0.31000
10+
$0.29200
25+
$0.25040
50+
$0.21280
100+
$0.20460
250+
$0.18368
500+
$0.17532
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0026481023 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Obsolete
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.172" (4.37mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.360" (9.14mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
