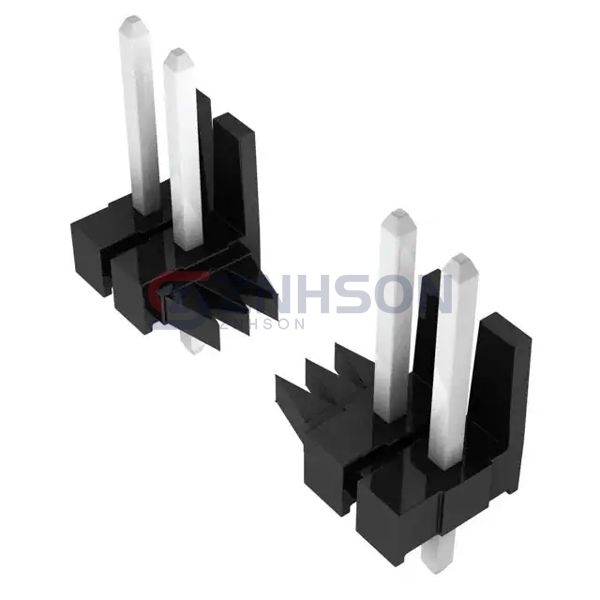

0026481113
Molex
Molex
CONN HEADER VERT 11POS 3.96MM
$1.33
Available to order
Reference Price (USD)
1+
$1.33000
10+
$1.17100
25+
$1.10200
50+
$1.05620
100+
$1.01020
250+
$0.91840
500+
$0.82656
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0026481113 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0026481113 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Obsolete
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 11
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.172" (4.37mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.360" (9.14mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
