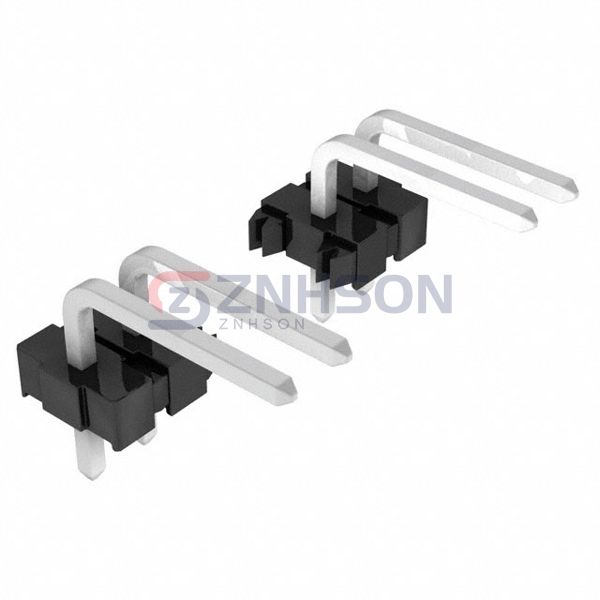

0026481132
Molex
Molex
CONN HEADER R/A 13POS 3.96MM
$1.32
Available to order
Reference Price (USD)
1+
$1.32000
10+
$1.15800
25+
$1.09000
50+
$1.04480
100+
$0.99930
250+
$0.90844
500+
$0.81760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0026481132 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0026481132 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.573" (14.55mm)
- Contact Length - Post: 0.184" (4.67mm)
- Overall Contact Length: -
- Insulation Height: 0.128" (3.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PEC31SAFN
Molex
0022232221
Samtec Inc.
TSW-139-08-G-D-RA
Amphenol ICC (FCI)
10075025-G01-20ULF
TE Connectivity AMP Connectors
5499923-4
Sullins Connector Solutions
PRPC010SFAN-RC
Molex

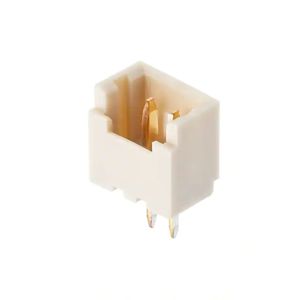

0530470460
Preci-Dip

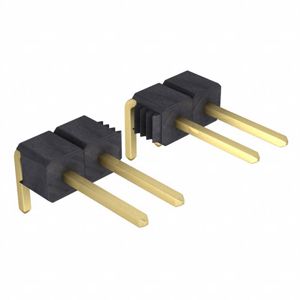

890-70-034-20-001101
