0026486244
Molex
Molex
CONN HEADER R/A 24POS 3.96MM
$2.66
Available to order
Reference Price (USD)
1+
$2.25000
10+
$2.04400
100+
$1.75220
500+
$1.46020
1,000+
$1.25160
5,000+
$1.10975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

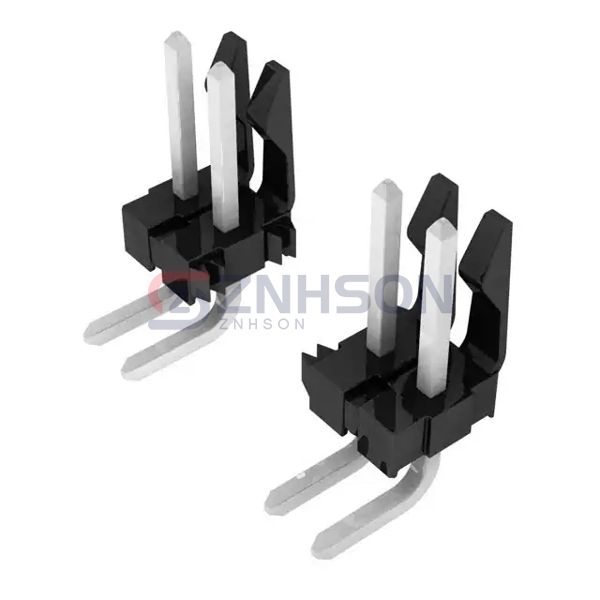

The 0026486244 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 24
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.528" (13.41mm)
- Contact Length - Post: 0.207" (5.26mm)
- Overall Contact Length: -
- Insulation Height: 0.355" (9.02mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
