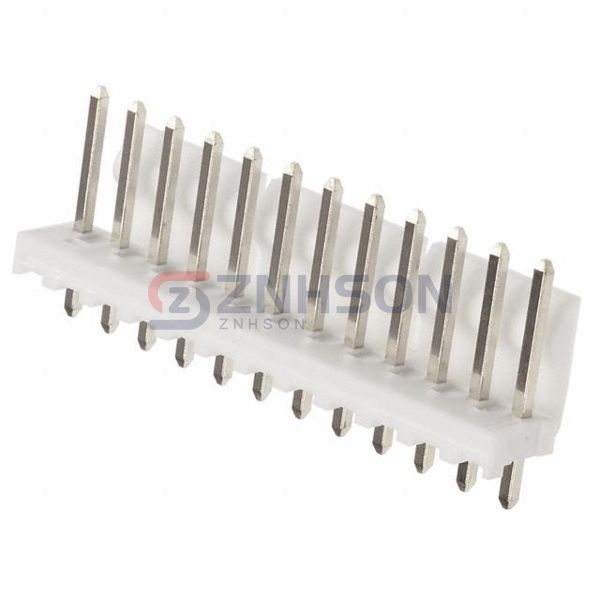

0026604120
Molex
Molex
CONN HEADER VERT 12POS 3.96MM
$1.13
Available to order
Reference Price (USD)
1+
$1.40000
10+
$1.27400
100+
$1.09200
500+
$0.91000
1,000+
$0.78000
5,000+
$0.69160
10,000+
$0.67600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 0026604120 rectangular connector header from Molex. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 0026604120 is perfect for automotive, industrial, and consumer electronics. Molex ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.140" (3.56mm)
- Overall Contact Length: 0.720" (18.29mm)
- Insulation Height: 0.446" (11.33mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
68021-108HLF
Sullins Connector Solutions
PREC026SACN-RC
Samtec Inc.
TSW-101-14-T-D
Samtec Inc.

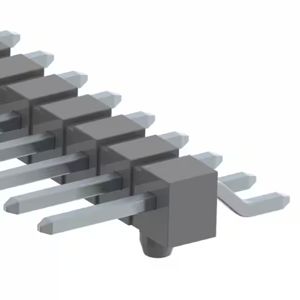

TSM-126-01-T-SH-A
TE Connectivity AMP Connectors

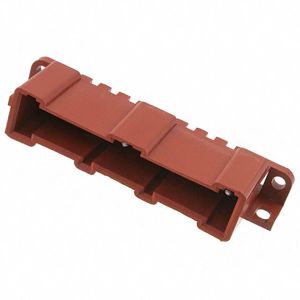

3-208403-3
Molex

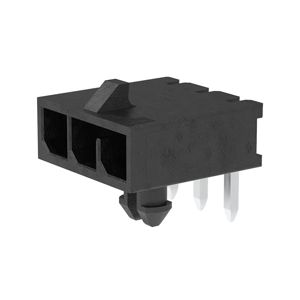

2157601002
Amphenol ICC (FCI)

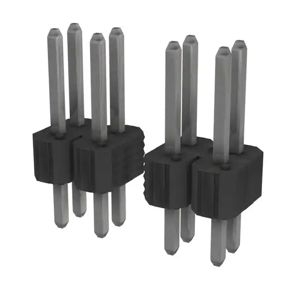

67997-412HLF
Samtec Inc.

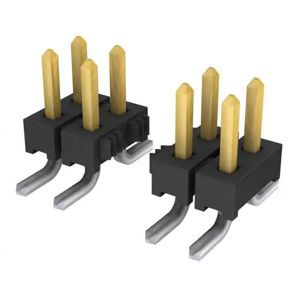

TMM-126-06-L-D-SM
