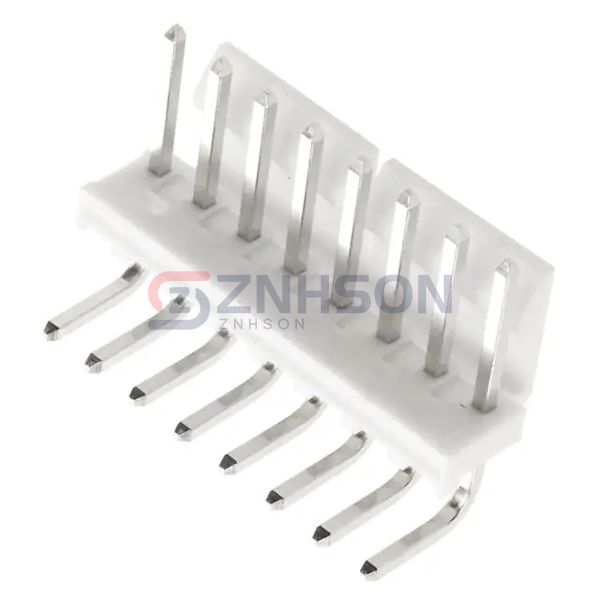

0026605080
Molex
Molex
CONN HEADER R/A 8POS 3.96MM
$1.11
Available to order
Reference Price (USD)
1+
$1.00000
10+
$0.88000
100+
$0.75900
500+
$0.62100
1,000+
$0.55200
5,000+
$0.48300
10,000+
$0.45885
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0026605080 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0026605080 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.156" (3.96mm)
- Overall Contact Length: -
- Insulation Height: 0.394" (10.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-128-01-T-SH-A
Hirose Electric Co Ltd
DF11G-4DP-2V(50)
Samtec Inc.
FTSH-110-01-L-DV-EJ-P-TR
Samtec Inc.
TMM-105-06-S-D-SM-TR
Amphenol ICC (FCI)

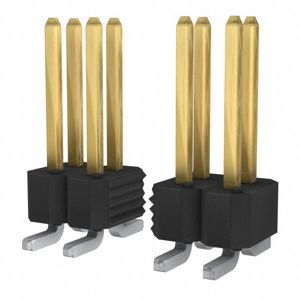

95278-102B12LF
Samtec Inc.

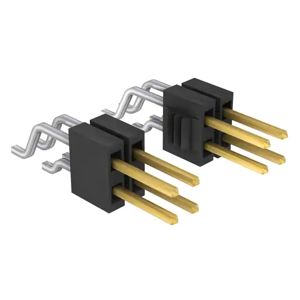

FTSH-106-04-L-DH
Samtec Inc.

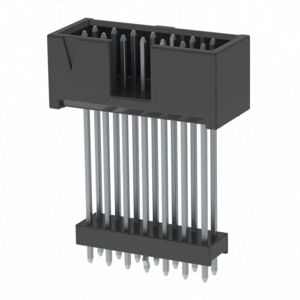

ZSS-107-06-T-D-1040-LL
Preci-Dip

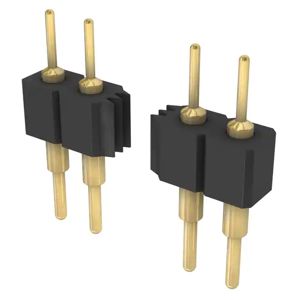

351-10-132-00-004101
