0026614180
Molex
Molex

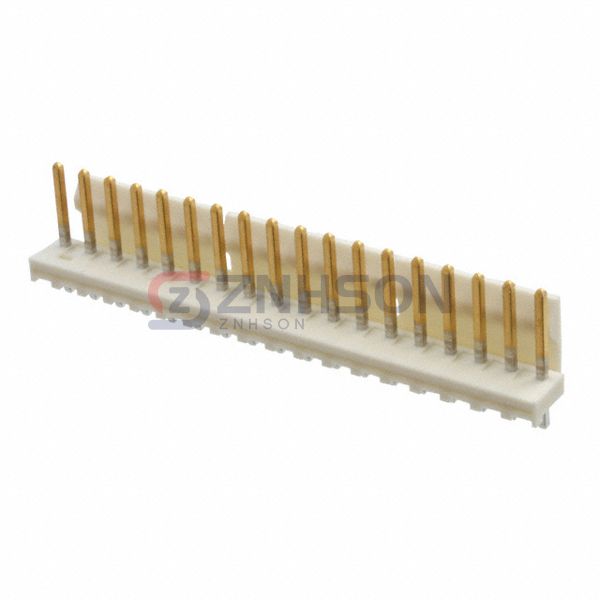

CONN HEADER VERT 18POS 3.96MM
$11.64
Available to order
Reference Price (USD)
1+
$8.04000
10+
$7.70500
100+
$6.36500
500+
$5.36000
1,000+
$4.69000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 0026614180 rectangular connector header from Molex. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 0026614180 is perfect for automotive, industrial, and consumer electronics. Molex ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 18
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.140" (3.56mm)
- Overall Contact Length: 0.720" (18.29mm)
- Insulation Height: 0.446" (11.33mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
FTE-127-01-G-DH
TE Connectivity AMP Connectors
2367197-4
TE Connectivity AMP Connectors
5-146135-6
Preci-Dip
894-70-117-20-001101
TE Connectivity AMP Connectors
4-102977-0-27
TE Connectivity AMP Connectors
178495-1
Samtec Inc.
FTSH-110-05-F-DV-A
TE Connectivity AMP Connectors
9-146256-0-35
Molex

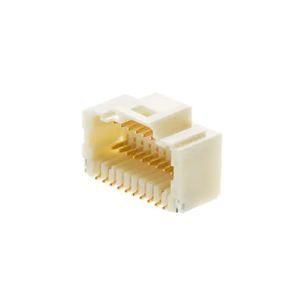

2035663007
