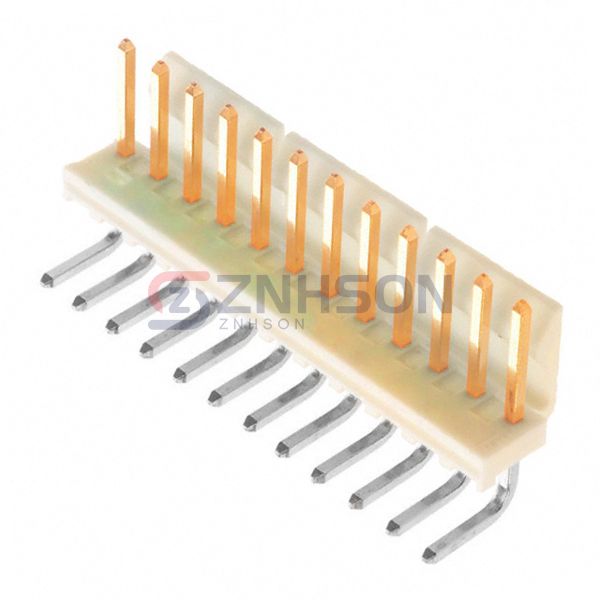

0026615120
Molex
Molex
CONN HEADER R/A 12POS 3.96MM
$11.33
Available to order
Reference Price (USD)
1+
$8.89000
10+
$8.50700
100+
$7.15360
500+
$5.99354
1,000+
$5.29752
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0026615120 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0026615120 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.156" (3.96mm)
- Overall Contact Length: -
- Insulation Height: 0.394" (10.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
