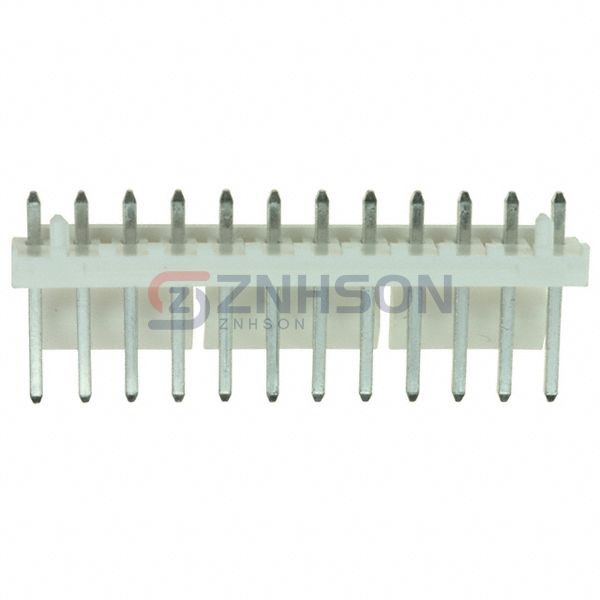

0026644120
Molex
Molex
CONN HEADER VERT 12POS 3.96MM
$1.34
Available to order
Reference Price (USD)
1+
$1.24000
10+
$1.08900
100+
$0.93980
500+
$0.76896
1,000+
$0.68352
5,000+
$0.59808
10,000+
$0.56818
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 0026644120 rectangular connector header from Molex. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 0026644120 is perfect for automotive, industrial, and consumer electronics. Molex ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.140" (3.56mm)
- Overall Contact Length: 0.720" (18.29mm)
- Insulation Height: 0.446" (11.33mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-108-01-SM-DV-A-P-TR
Harwin Inc.
M20-9980546
Molex
0532541170
Sullins Connector Solutions
PBC26SFEN
Mill-Max Manufacturing Corp.
850-10-022-40-001000
Samtec Inc.
TST-105-04-T-D-RA
Amphenol ICC (FCI)
77315-428-30LF

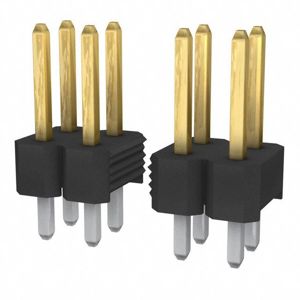

Amphenol ICC (FCI)
