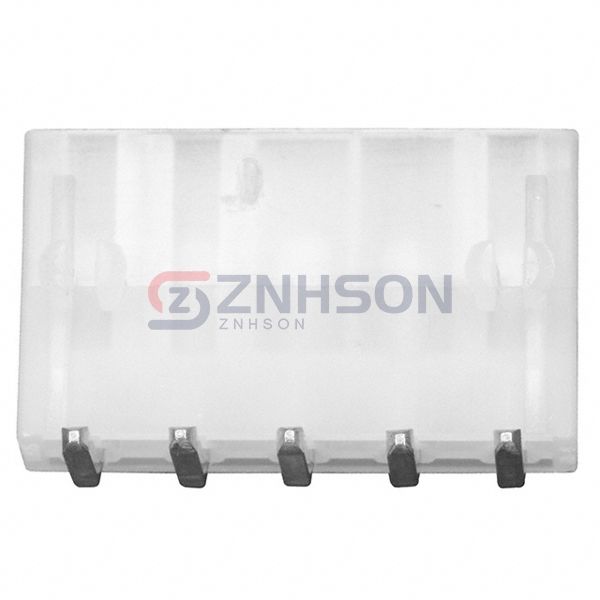

0039303057
Molex
Molex
CONN HEADER R/A 5POS 4.2MM
$2.65
Available to order
Reference Price (USD)
1+
$2.09000
10+
$1.89200
100+
$1.62170
500+
$1.35140
1,000+
$1.15835
5,000+
$1.02707
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0039303057 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.504" (12.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
HARTING
09185167902
Molex
0022289125
TE Connectivity AMP Connectors
5499160-1
TE Connectivity AMP Connectors
2029265-2
Würth Elektronik
610122249121
Samtec Inc.
TSM-102-03-S-SH
Hirose Electric Co Ltd
DF33C-8DP-3.3DSA(24)
Preci-Dip
892-70-004-20-002101

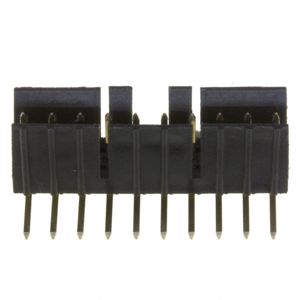

Amphenol ICC (FCI)
