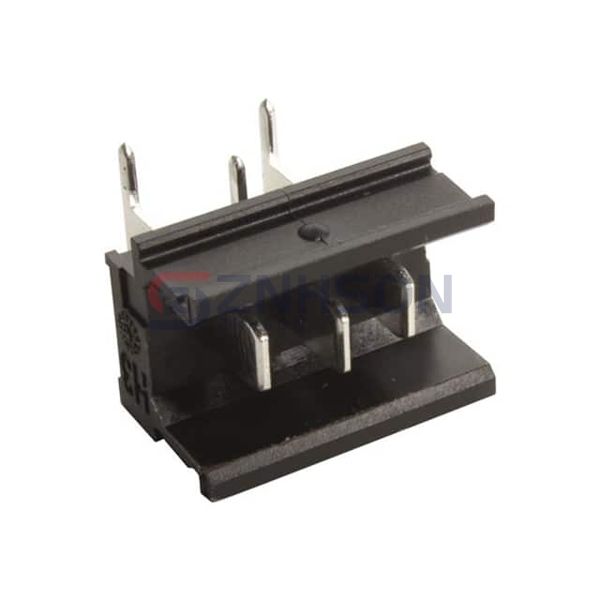

02519031301
HARTING
HARTING
3POSITION 15A ANGLED MALE
$4.10
Available to order
Reference Price (USD)
1+
$4.10000
500+
$4.059
1000+
$4.018
1500+
$3.977
2000+
$3.936
2500+
$3.895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 02519031301 rectangular connector header from HARTING for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. HARTING is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.200" (5.08mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.110" (2.80mm)
- Overall Contact Length: -
- Insulation Height: 0.579" (14.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Silver
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 15A
- Voltage Rating: -
