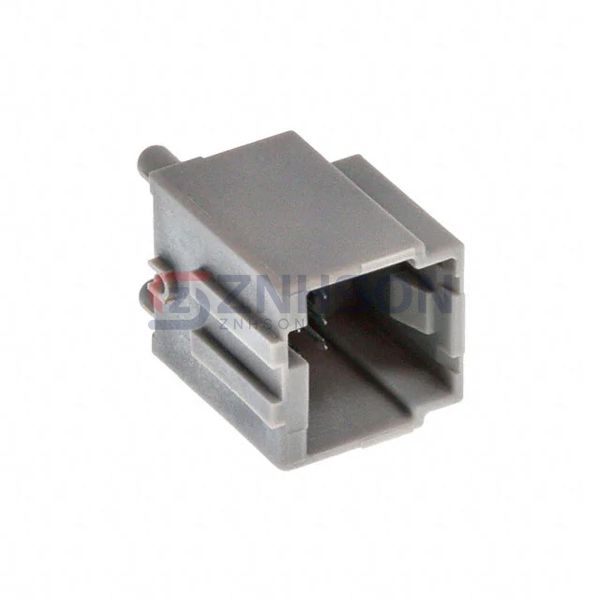

0307004080
Molex
Molex
CONN HEADER VERT 8POS 2.54MM
$1.79
Available to order
Reference Price (USD)
1+
$1.38000
10+
$1.25400
144+
$1.07458
576+
$0.89547
1,008+
$0.76755
5,040+
$0.68056
10,080+
$0.66521
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0307004080 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0307004080 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.311" (7.90mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: 0.692" (17.58mm)
- Insulation Height: 0.854" (21.69mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
