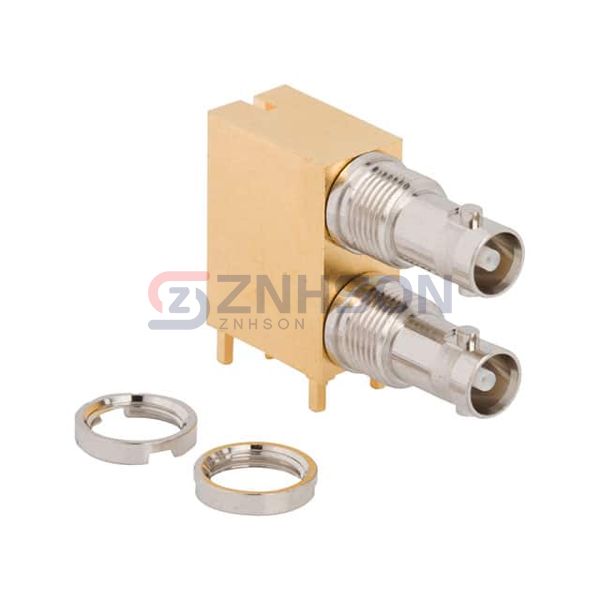

034-1131-12G
Amphenol RF
Amphenol RF
HD-BNC DUAL PORT, RIGHT ANGLE PC
$19.87
Available to order
Reference Price (USD)
1+
$19.87000
500+
$19.6713
1000+
$19.4726
1500+
$19.2739
2000+
$19.0752
2500+
$18.8765
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 034-1131-12G from Amphenol RF represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 034-1131-12G variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: BNC, HD
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 18 GHz
- Number of Ports: 2
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
