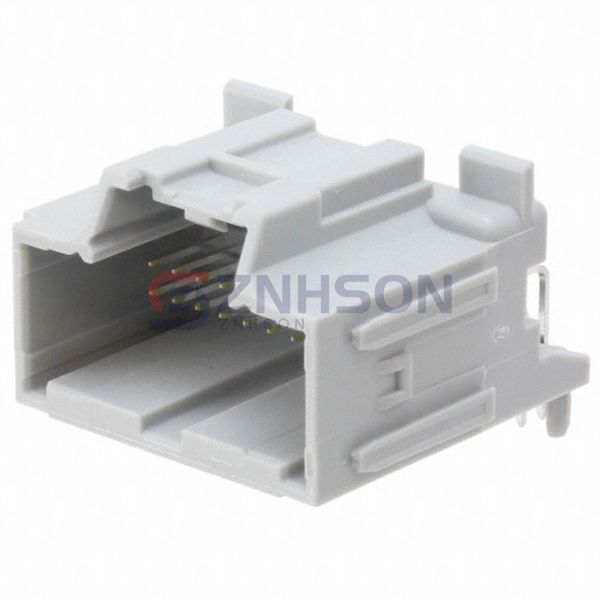

0346916201
Molex
Molex
CONN HEADER R/A 20POS 2.54MM
$4.54
Available to order
Reference Price (USD)
1+
$2.23000
10+
$2.04300
100+
$1.77300
500+
$1.50316
1,000+
$1.31045
5,000+
$1.17940
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0346916201 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.119" (3.02mm)
- Overall Contact Length: -
- Insulation Height: 0.868" (22.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Cartridge Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
