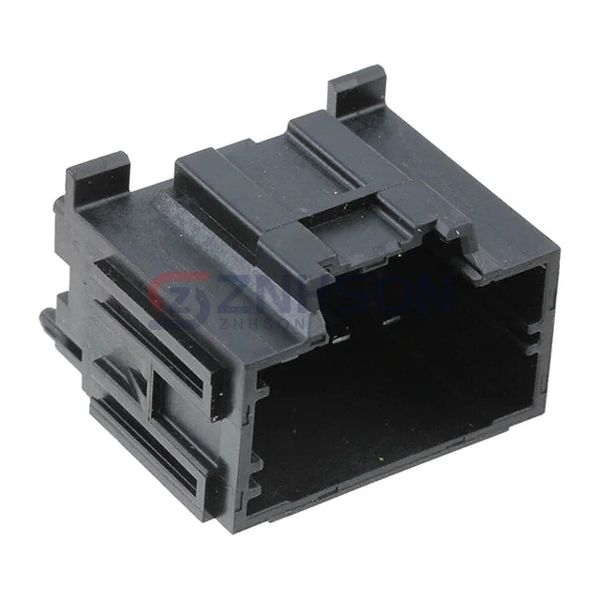

0346950100
Molex
Molex
CONN HEADER VERT 10POS
$3.45
Available to order
Reference Price (USD)
1+
$2.87000
10+
$2.76600
100+
$2.34010
560+
$2.02102
1,120+
$1.75511
5,040+
$1.59555
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0346950100 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade; Male Pin
- Pitch - Mating: -
- Number of Positions: 10 (6 + 4 Power)
- Number of Rows: 2
- Row Spacing - Mating: 0.248" (6.30mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.117" (2.97mm)
- Overall Contact Length: -
- Insulation Height: 1.104" (28.04mm)
- Contact Shape: Rectangular, Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Board Guide, Solder Retention
- Operating Temperature: -40°C ~ 100°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 500V
