0416710041
Molex
Molex
CONN HEADER VERT 19POS 3.96MM
$8.21
Available to order
Reference Price (USD)
1+
$7.82000
10+
$7.49400
25+
$6.84240
50+
$6.51660
100+
$6.19080
250+
$5.53912
500+
$5.21330
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0416710041 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 0416710041 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 19
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.172" (4.37mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.500" (12.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-178141-5
TE Connectivity AMP Connectors
8-1734508-0
Samtec Inc.
TSM-105-03-F-DV-A
Samtec Inc.
TSM-111-01-LM-DH-A-K-TR
Harwin Inc.
M20-8770842
Sullins Connector Solutions

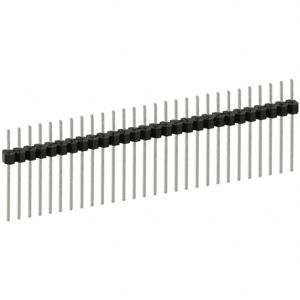

PEC28SAGN
TE Connectivity AMP Connectors

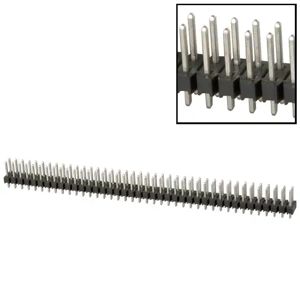

4-103777-0
