0428203244
Molex
Molex
CONN HEADER R/A 3POS 10MM
$6.61
Available to order
Reference Price (USD)
320+
$5.35025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

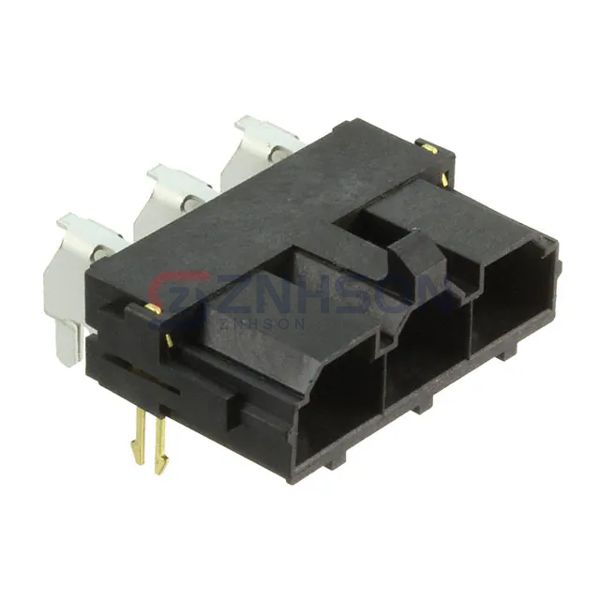

The 0428203244 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0428203244 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.394" (10.00mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.327" (8.30mm)
- Overall Contact Length: -
- Insulation Height: 0.421" (10.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Silver
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Zirconium Alloy
- Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
