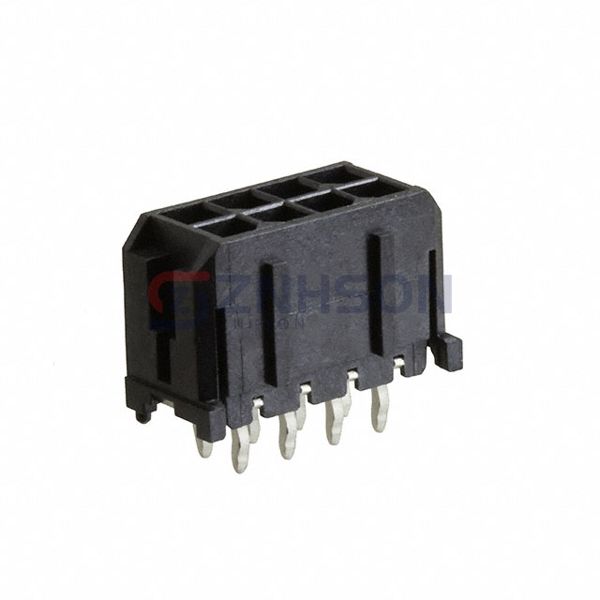

0430450814
Molex
Molex
CONN HEADER VERT 8POS 3MM
$3.36
Available to order
Reference Price (USD)
1+
$2.64000
10+
$2.53500
100+
$2.11280
500+
$1.79588
1,440+
$1.53178
5,760+
$1.37332
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 0430450814 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0430450814 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
