0430451421
Molex
Molex
CONN HEADER R/A 14POS 3MM
$5.25
Available to order
Reference Price (USD)
1+
$4.12000
10+
$3.95700
25+
$3.62760
50+
$3.46260
100+
$3.29780
250+
$2.88556
936+
$2.55579
1,872+
$2.30846
2,808+
$2.22601
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

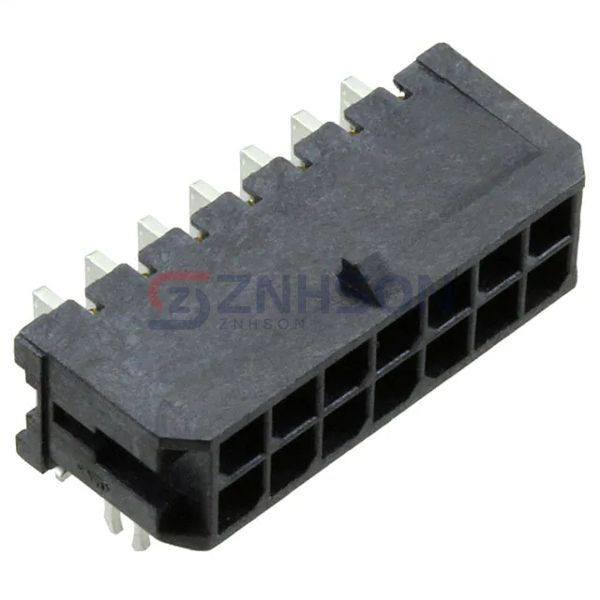

Discover the 0430451421 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0430451421 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.290" (7.37mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
Related Products
CNC Tech
3010-16-003-12-00
Samtec Inc.
TSM-102-02-L-SV-A-P-TR
Hirose Electric Co Ltd
DF1E-2P-2.5DS(35)
Samtec Inc.
TFML-145-01-S-D
Preci-Dip
450-V3-248-00-106101
Samtec Inc.
TSM-109-01-L-SH-A-K-TR
Molex
90136-2304
Samtec Inc.

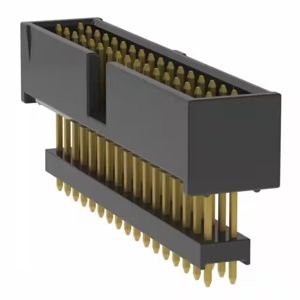

ZSS-117-02-G-D-615
