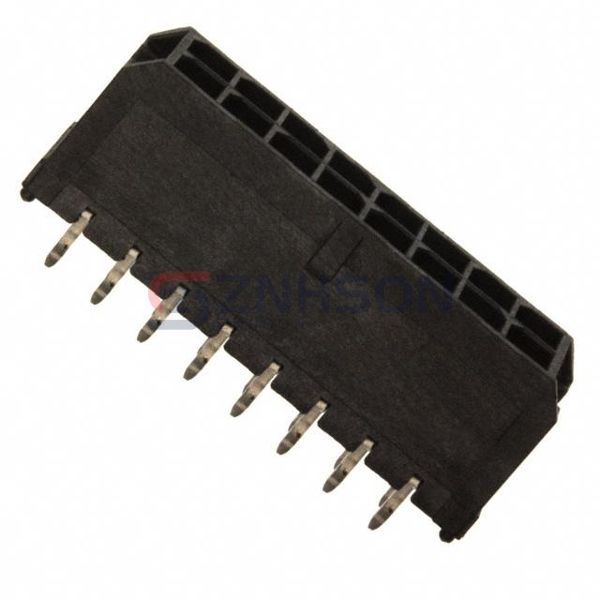

0430451614
Molex
Molex
CONN HEADER VERT 16POS 3MM
$6.82
Available to order
Reference Price (USD)
1+
$5.58000
10+
$5.35700
100+
$4.46440
792+
$3.45991
1,584+
$3.12508
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 0430451614 rectangular connector header from Molex. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 0430451614 is perfect for automotive, industrial, and consumer electronics. Molex ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
