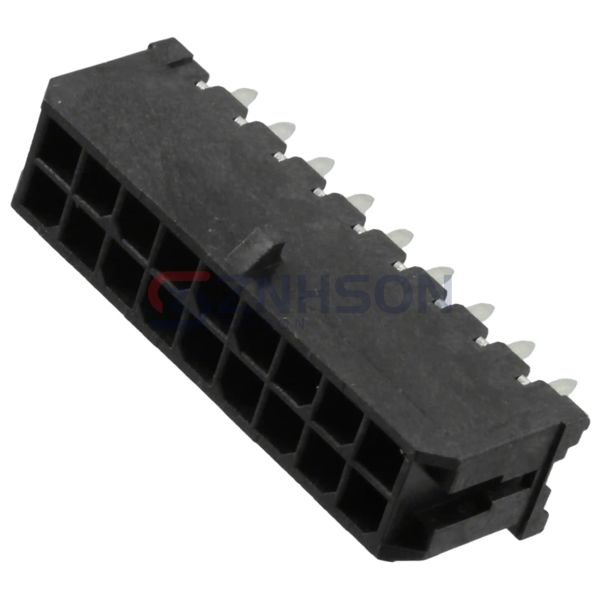

0430451827
Molex
Molex
CONN HEADER VERT 18POS 3MM
$5.18
Available to order
Reference Price (USD)
1+
$4.07000
10+
$3.90800
25+
$3.58240
50+
$3.41960
100+
$3.25680
250+
$2.84972
720+
$2.76828
1,440+
$2.36118
2,880+
$2.19834
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0430451827 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
Related Products
Samtec Inc.
ZSS-113-05-L-D-940
Samtec Inc.
TSM-105-01-T-DV-003-P-TR
Preci-Dip
850-80-042-30-135101
Samtec Inc.
TSW-119-23-G-D
Samtec Inc.
TSM-107-01-S-DV-LC-P
Samtec Inc.
IPL1-104-01-S-S-RA-K
Amphenol ICC (FCI)
67997-432HLF
TE Connectivity AMP Connectors
1903415-1
Amphenol ICC (FCI)

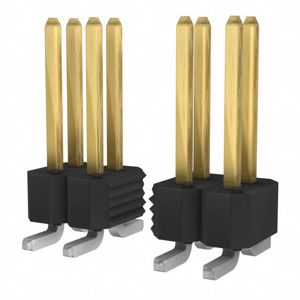

95278-102B16LF
