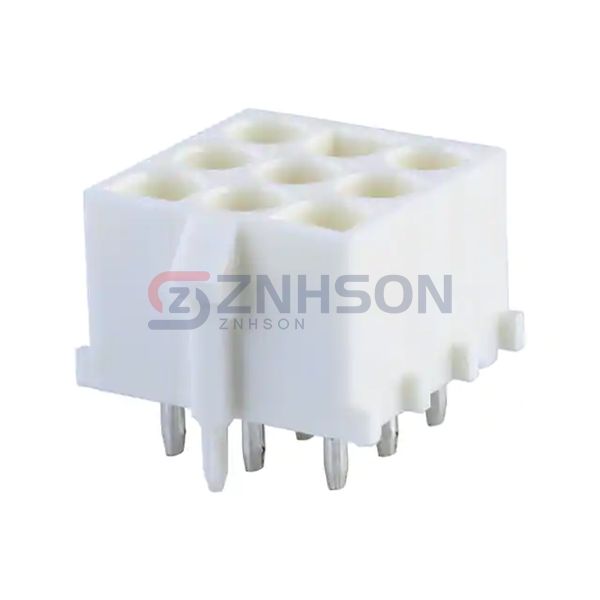

0432550147
Molex
Molex
CONN HDR 9POS 0.25 TIN PCB
$1.24
Available to order
Reference Price (USD)
1,040+
$0.97275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with 0432550147 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Molex connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Female Socket
- Style: Board to Cable/Wire
- Number of Positions: 9
- Number of Positions Loaded: All
- Pitch - Mating: 0.250" (6.35mm)
- Number of Rows: 3
- Row Spacing - Mating: 0.250" (6.35mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 137.8µin (3.50µm)
- Insulation Color: Natural
- Insulation Height: 0.550" (13.97mm)
- Contact Length - Post: 0.169" (4.30mm)
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-2
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Guide
- Current Rating (Amps): -
- Voltage Rating: 600V
Related Products
Samtec Inc.
ESQ-124-12-T-D
Mill-Max Manufacturing Corp.
851-99-055-10-002000
Samtec Inc.
FLE-145-01-G-DV-A-K
Preci-Dip
416-83-238-41-018101
Preci-Dip
326-83-109-41-001101
Mill-Max Manufacturing Corp.
801-43-033-10-012000
Mill-Max Manufacturing Corp.

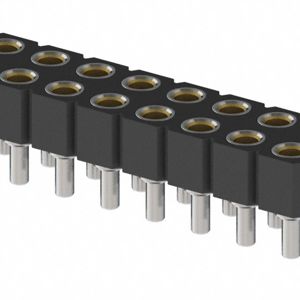

835-43-020-10-001000
Samtec Inc.

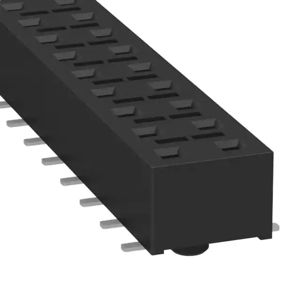

HLE-120-02-S-DV-A
Preci-Dip

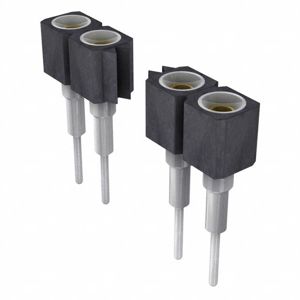

316-83-116-41-004101
