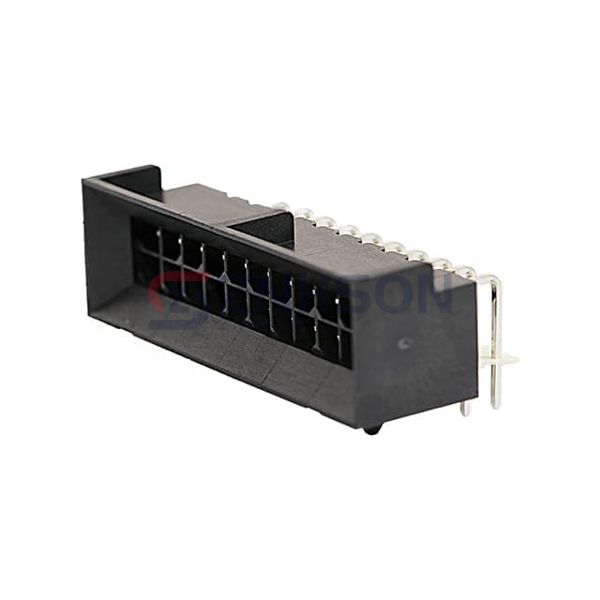

0444282002
Molex
Molex
CONN HEADER R/A 20POS 3MM
$6.92
Available to order
Reference Price (USD)
672+
$5.26656
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 0444282002 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0444282002 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.469" (11.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
