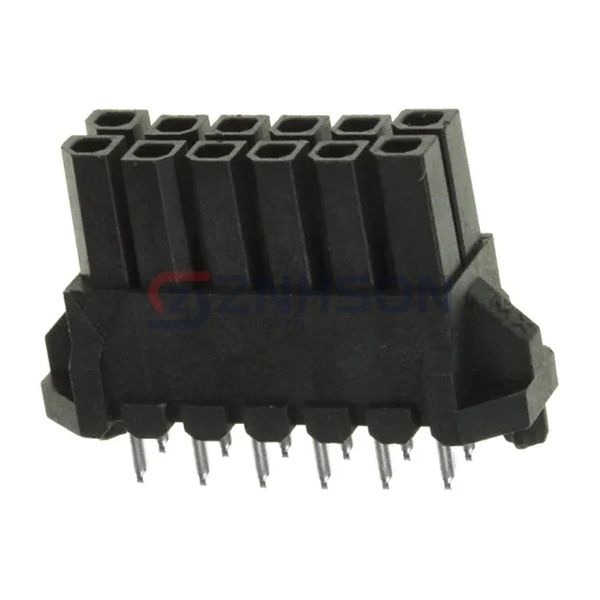

0447691201
Molex
Molex
CONN RCPT 12POS 0.118 TIN PCB
$6.14
Available to order
Reference Price (USD)
1+
$6.14000
500+
$6.0786
1000+
$6.0172
1500+
$5.9558
2000+
$5.8944
2500+
$5.833
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your project's performance with 0447691201 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are built to withstand harsh conditions while maintaining excellent electrical properties. Key features include high mating cycles, EMI shielding, and ergonomic designs. Widely used in renewable energy systems, robotics, and audio/video equipment, Molex connectors ensure seamless integration. Applications range from solar inverters to industrial robots and professional AV setups.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 12
- Number of Positions Loaded: All
- Pitch - Mating: 0.118" (3.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Insulation Color: Black
- Insulation Height: 0.535" (13.60mm)
- Contact Length - Post: 0.134" (3.40mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 16.86mm
- Ingress Protection: -
- Features: Board Guide
- Current Rating (Amps): 5A
- Voltage Rating: 250VAC
