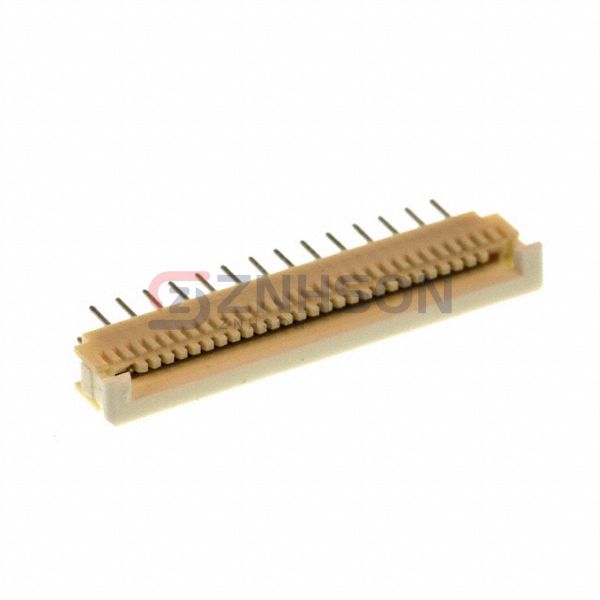

0520302829
Molex
Molex
CONN FPC VERT 28POS 1.00MM PCB
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the 0520302829 FFC/FPC Connectors from Molex, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The 0520302829 series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Molex's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for 0520302829 when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FPC
- Mounting Type: Through Hole
- Connector/Contact Type: Contacts, Vertical - 1 Sided
- Number of Positions: 28
- Pitch: 0.039" (1.00mm)
- Termination: Kinked Pin
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.205" (5.20mm)
- Locking Feature: Slide Lock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Tin Bismuth
- Housing Material: Polyamide (PA66), Nylon 6/6
- Actuator Material: Polyester
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -20°C ~ 80°C
- Material Flammability Rating: UL94 V-0
