0522070585
Molex
Molex
CONN FFC FPC TOP 5POS 1.00MM R/A
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0522070585 FFC/FPC Connectors by Molex deliver unparalleled reliability for mission-critical electronic systems. Designed with a dual-beam contact system, these connectors ensure low contact resistance and high mating stability even under mechanical stress. Applications range from underwater robotics to high-altitude aviation electronics, where the 0522070585's hermetic sealing options prove invaluable. Molex employs state-of-the-art SMT packaging for streamlined assembly processes. When failure is not an option, engineers worldwide trust 0522070585 connectors to maintain uninterrupted performance in extreme conditions.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top
- Number of Positions: 5
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.106" (2.70mm)
- Locking Feature: Slide Lock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Tin Bismuth
- Housing Material: Polyamide (PA46), Nylon 4/6
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 125V
- Operating Temperature: -30°C ~ 85°C
- Material Flammability Rating: UL94 V-0
Related Products
Molex
0514410693
Hirose Electric Co Ltd
FH12S-40S-0.5SH
Amphenol ICC (FCI)

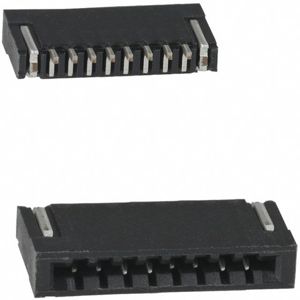

HFW8R-1STE1LF
JAE Electronics

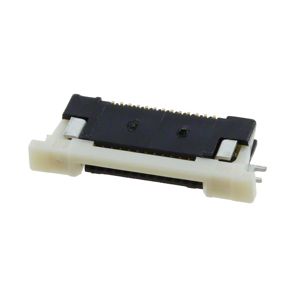

IL-FPR-13S-HF-N1
Amphenol ICC (FCI)

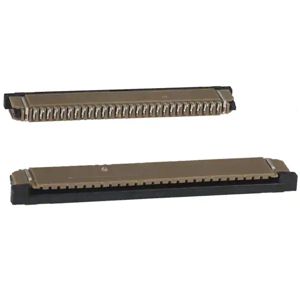

SFW28R-2STE1
