0522711169
Molex
Molex
10 FPCZIFSMTRABTMAU11CKTEMBSTPPK
$1.60
Available to order
Reference Price (USD)
1,000+
$0.74464
2,000+
$0.69810
3,000+
$0.67483
5,000+
$0.65156
10,000+
$0.61898
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the 0522711169 FFC/FPC Connectors from Molex, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The 0522711169 series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Molex's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for 0522711169 when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 11
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.118" (3.00mm)
- Locking Feature: Slide Lock
- Cable End Type: Tapered
- Contact Material: Phosphorus Bronze
- Contact Finish: Gold
- Housing Material: Polyamide (PA46), Nylon 4/6
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Top Load
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
Related Products
Omron Electronics Inc-EMC Div
XF2M-2415-1A-R100
Amphenol ICC (FCI)
SFW4S-2STE9LF
Hirose Electric Co Ltd

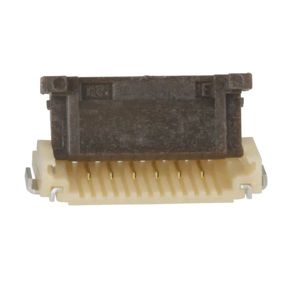

FH12-6S-1SH(55)
Molex

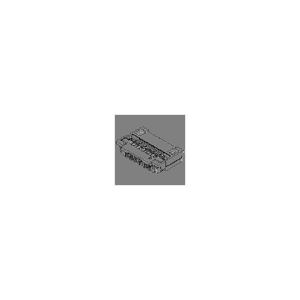

502078-1360
Cvilux USA

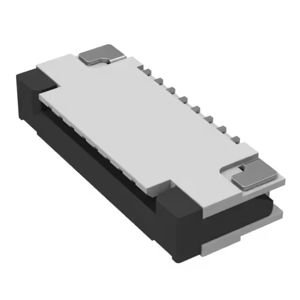

CF07081U0R0-NH
Omron Electronics Inc-EMC Div

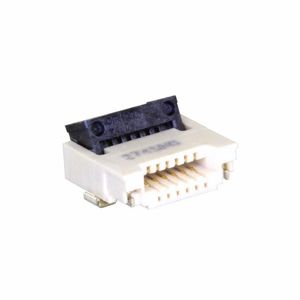

XF3M-0615-1B
Hirose Electric Co Ltd

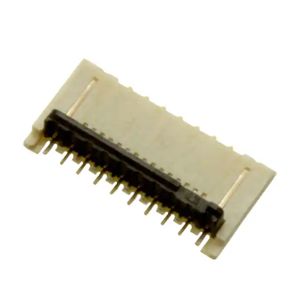

FH64MA-15S-0.25SHW(99)
Amphenol ICC (FCI)

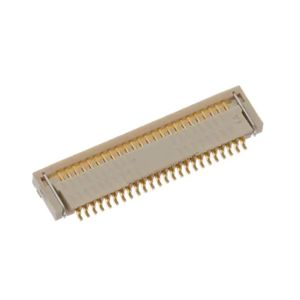

10051922-2410EHLF
Würth Elektronik

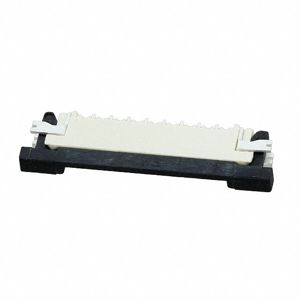

686108183522
