0522712269
Molex
Molex

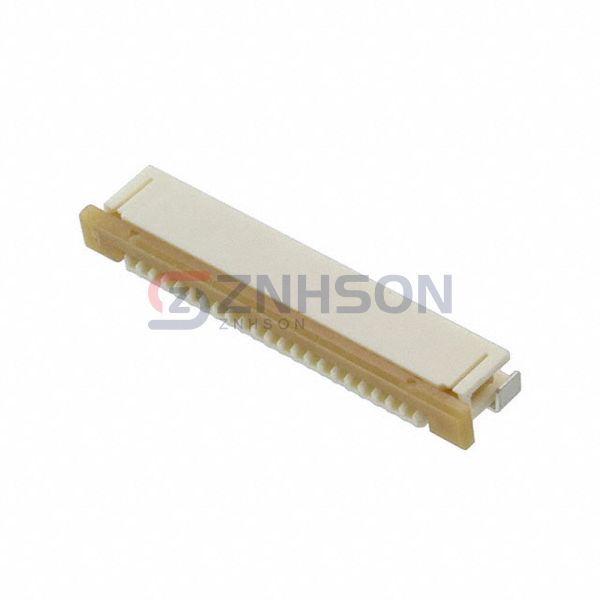

CONN FPC BOTTOM 22POS 1.00MM R/A
$2.61
Available to order
Reference Price (USD)
1,000+
$1.13715
2,000+
$1.09925
3,000+
$1.06134
5,000+
$1.00827
10,000+
$0.98553
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Revolutionize your interconnections with Molex's 0522712269 FFC/FPC Connectors, built for the challenges of tomorrow's electronics. These connectors excel in high-flex applications with a minimum 10,000-cycle durability rating and anti-mismating keying options. The 0522712269 is a favorite in satellite modules, electric vehicle charging stations, and industrial HMI panels due to its rugged construction. Molex incorporates advanced materials like LCP insulators for thermal stability. With customizable cable lengths and polarization options, 0522712269 adapts to your exact specifications a true partner in innovation.
Specifications
- Product Status: Active
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 22
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.118" (3.00mm)
- Locking Feature: Slide Lock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Polyamide (PA46), Nylon 4/6
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
